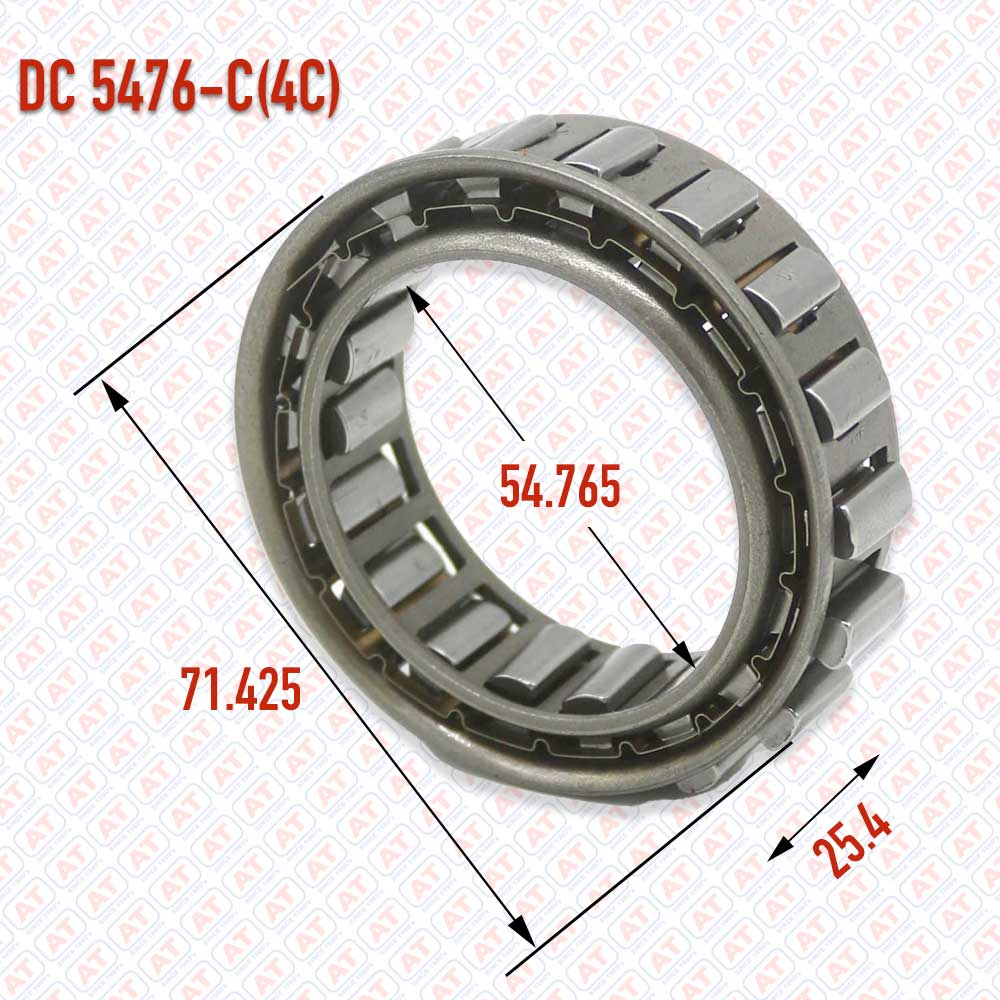

Sprag Clutch Cage DC 5476-C(4C) for Compact High-Torque One-Way Locking
The DC 5476-C(4C) YFB sprag clutch cage is a compact, high-torque one-way lock element designed to operate between matching inner and outer races. It provides positive drive in one direction and smooth overrunning in reverse, protecting conveyors, gearboxes, and indexing mechanisms across Pakistan. As the exclusive owner and distributor of YFB brand in Pakistan, Abdul Traders supplies genuine DC Series sprag cages to OEMs and maintenance teams in Lahore, Karachi, and Faisalabad.
Key Features
High-torque sprag clutch cage with compact dimensions and four-point cage support (4C). Hardened sprags engage quickly under load and release cleanly during overrunning, giving low backlash and reliable one-way locking. YFB DC 5476-C(4C) is suitable for frequent start–stop duty where smooth indexing and secure backstop protection are required.
Technical Specifications

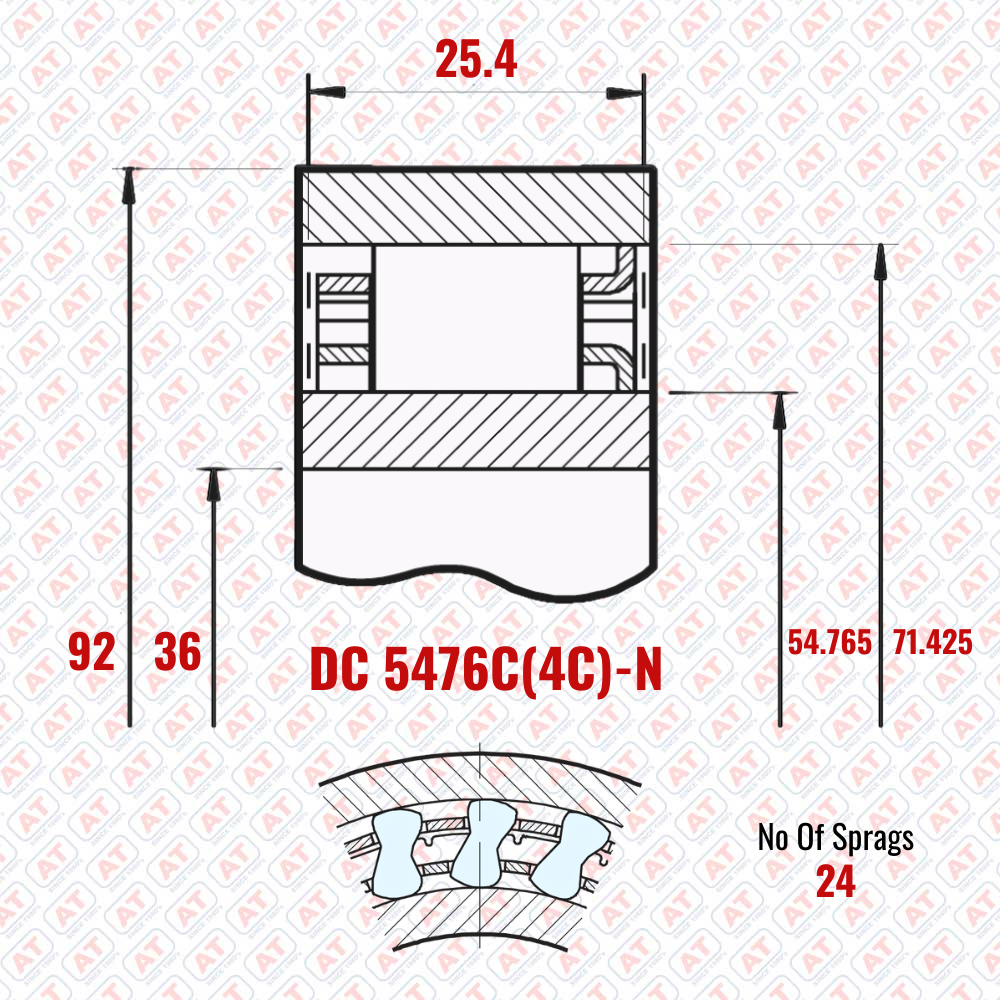

DC 5476-C(4C) is manufactured from quality bearing steel with accurately profiled sprags and a reinforced cage design. The unit is intended to run between correctly machined inner and outer raceways with appropriate lubrication. Even load distribution across the sprags supports long service life in continuous-duty and high-cycle environments throughout Pakistan’s industrial sector.
Industrial Applications
Used as the active element in overrunning clutches, backstops, and indexing drives for conveyors, elevators, packaging machines, and general power transmission equipment. Favoured by OEMs and repair workshops in Lahore, Karachi, Faisalabad, and other hubs that need compact, serviceable one-way locking solutions.
Contact Information
WhatsApp: +86 183 0611 5059
Phone: 042-37653390 | 042-37651231
Website: abdultraders.pk
Choose Abdul Traders for authentic YFB DC Series sprag clutch cages that deliver compact, high-torque one-way locking.
